From Polystyrene Bead to Final Shape: The Ultimate Guide to the EPS Foam Molding Process

Hello, my name is Allen. I’m not just an author; I’m a manufacturer. For over two decades, I’ve lived on the factory floor, overseeing the design and production of EPS and EPP foam machinery. At exhibitions across the globe, I have conversations with business owners like Mark Thompson from the USA—decisive, knowledgeable leaders who need their equipment to perform flawlessly. They often ask me to cut through the jargon and explain the molding process for Expanded Polystyrene (EPS). This guide is for them, and for you. We will go beyond the surface to explore how a tiny polystyrene bead is transformed into a complex, durable shape, helping you understand the technology so you can make smarter decisions for your business.

What Exactly is EPS Foam and Why is it So Widely Used?

EPS foam, which is short for expanded polystyrene foam, is a rigid, closed-cell plastic foam material. You almost certainly encounter it every day. It’s the protective packaging that cushions a new appliance, the insulation inside the walls of a building, and the material used for lightweight coolers and even surfboards. At its origin, EPS starts as tiny, hard polystyrene beads, no bigger than grains of sugar. These beads are infused with a blowing agent called pentane. When heat, usually in the form of steam, is applied, the beads soften and the pentane expands, causing the bead to puff up to many times its original size.

The reason EPS foam is so ubiquitous is its incredible versatility and cost-effectiveness. This foaming process creates a material that is approximately 98% air, making it extraordinarily lightweight. This property alone makes it ideal for reducing shipping costs in packaging and easing the load in construction applications. But its benefits go far beyond its weight. The closed-cell structure of the fused beads gives EPS foam excellent thermal insulation properties and impressive compressive strength relative to its density. It’s also moisture-resistant, non-toxic, and 100% recyclable, addressing some of the environmental impact concerns associated with plastics. Its unique combination of properties makes it a go-to material for cost-effective solutions across dozens of various industries.

What are the Key Properties of EPS Foam You Should Know?

When business owners evaluate materials, they look at the performance data. EPS foam has a unique profile of properties that makes it a standout choice compared to other materials. Understanding these characteristics is key to appreciating why the molding process is so important for harnessing its full potential.

Here are the defining properties of EPS:

• Exceptional Thermal Insulation: The trapped air within the foam‘s closed-cell structure makes it a fantastic insulator. It dramatically reduces heat transfer, which is why it’s a leading material for building insulation. The thermal conductivity is very low, making it highly efficient.
• Extremely Lightweight: Being mostly air, EPS foam has a very low foam density. This lightweight nature is a massive advantage in applications where weight is a concern, such as in protective packaging for fragile items and for creating large architectural or decorative elements.
• High Compressive Strength: Despite being lightweight, EPS foam can withstand significant loads. Its strength-to-weight ratio is excellent. The higher the density of the foam, the greater its compressive strength becomes, making it suitable for load-bearing applications in construction.
• Moisture Resistance: EPS foam is a non-hygroscopic material, meaning it does not readily absorb moisture from the atmosphere. This resistance to water helps it maintain its structural integrity and insulation properties over time.
• Durability and Longevity: Expanded Polystyrene is a stable material that does not rot or decompose. This gives foam products made from EPS a very long lifespan, ensuring their performance for decades in applications like building insulation.
• Versatility in Shape and Form: As we will explore, the molding process allows EPS foam to be formed into nearly any shape imaginable, from simple sheets to highly complex, custom-designed components.

How Does the EPS Foam Molding Process Work Step-by-Step?

Transforming a tiny bead into a large, solid shape is a fascinating process that relies on the precise application of heat and pressure. As a manufacturer of the machines that perform this process, I’ve seen it thousands of times. It’s a three-stage dance of science and engineering.

1. Pre-Expansion: The process begins with raw, unexpanded polystyrene beads. These beads are fed into a machine called a pre-expander, where they are heated with steam. This causes the blowing agent inside the beads to expand, puffing them up like popcorn. This step is critical because this is where the final density of the foam is determined. The amount of steam and time in the expander controls how much the beads expanded, resulting in a less dense or higher density foam. After expanding, the pre-expanded beads are aged in large silos to stabilize.

2. Molding: The stabilized EPS beads are then conveyed into the mold. This mold is a hollow tool, usually made from aluminum, that has been machined into the negative of the desired shape. Once the mold cavity is filled with the beads, the mold is sealed shut. Steam is then injected directly into the mold. This second application of heat causes a final expansion of the beads and softens their outer surfaces, allowing them to fuse together and perfectly conform to the shape of the mold.

3. Cooling and Ejection: After the beads have fully fused, the steam is shut off and the mold is cooled, typically by circulating water through channels within the mold or by using a vacuum. It’s crucial to cool the part sufficiently so it becomes rigid. If it’s ejected from the mold while still too warm, it can deform or suffer from distortion. Once properly cooled, the mold opens, and ejector pins push the final, solid EPS foam part out. The molding process is now complete, and the part is ready for any final finishing or packaging.

What is the Crucial Role of the Mold in the Foaming Process?

The mold is the heart of the molding EPS operation. You can have the best machine and the highest quality beads, but if your mold is poorly designed or constructed, your final product will suffer. The mold is what defines the final shape, surface finish, and dimensional accuracy of the EPS foam product. I always tell my clients that investing in a high-quality mold is just as important as investing in a high-quality machine.

A good EPS mold has several key features. It must be made from a high-quality aluminum alloy that allows for excellent heat transfer, ensuring the steam penetrates evenly and the part can cool quickly. The mold cavity must be machined with extreme precision to match the desired shape of the final product. Any imperfection on the surface of the mold will be transferred directly onto the surface of the foam.

Furthermore, the mold must be designed with strategically placed vents to allow the air inside the cavity to escape as the beads expand and the steam enters. If the air is trapped, it can lead to under-filled sections or weak spots in the final part. The design of the filling guns and the sprue system (the channels that deliver the beads into the mold) is also critical to ensure that the mold fills completely and evenly. A well-designed mold is the difference between a perfect part and a pile of scrap.

How is Foam Density Controlled During the EPS Molding Process?

One of the most important variables in EPS foam production is density. The foam density directly impacts nearly all of its other properties—its thermal insulation value, its compressive strength, and its durability. For a business owner like Mark, controlling density is essential for meeting customer specifications and managing material costs. A higher density foam is stronger but uses more raw material, making it more expensive to produce.

The control of density happens primarily during the first stage of the molding process: pre-expansion. When the raw polystyrene beads are heated in the pre-expander, we can precisely control how much they expand.

• To create a low-density foam: We use more steam for a longer period. This causes the beads to expand to a larger size, meaning fewer beads are needed to fill the mold. The resulting product is lighter and has better thermal insulation but lower compressive strength.
• To create a high-density foam: We use less steam for a shorter period. The beads expand less, so more of them are required to fill the mold. The final product is heavier, stronger, and more durable, but its insulation properties are slightly reduced.

This ability to precisely control the density is a key advantage of the EPS foam manufacturing process. It allows producers to tailor the foam to the specific requirements of the application, whether it’s a lightweight packaging insert or a high-strength construction block.

Can an EPS Mold Really Create Complex and Intricate Shapes?

Absolutely. This is one of the greatest strengths of the EPS foam molding process. While many people associate EPS with simple blocks or sheets, modern molding technology can produce incredibly complex shapes with intricate details. The polystyrene beads act like a fluid when they are blown into the mold, allowing them to fill every tiny corner and crevice of the mold cavity.

This capability is what makes EPS foam so valuable for custom protective packaging. A mold can be created that perfectly matches the contours of a product, creating a cushion that protects it from shocks and vibrations during shipping. This is far superior to simply using generic foam blocks to carve out a space. The molding process is also used to create architectural elements like decorative cornices and columns, which would be very expensive to produce from traditional materials.

However, there are design considerations. For the part to be ejected, the mold must be able to open without trapping it. This means designers need to think about draft angles (slight tapers on vertical surfaces). But with clever mold design, including the use of side-actions or cores, even very complex shapes are achievable. The versatility of the EPS foam molding process is truly remarkable.

What is the "Lost Foam" Casting Process and How Does it Use EPS?

The lost foam casting process is a brilliant manufacturing technique that uses EPS foam to create a single-use pattern for casting metal parts. It’s a perfect example of how the unique properties of EPS can be leveraged in other industries. In this process, a mold is first used to create an exact replica of the desired metal part out of EPS foam. This foam pattern can be quite complex and may even include the channels that will guide the molten metal, known as the sprue and gating system.

This EPS foam pattern is then coated with a refractory ceramic material and placed in a container filled with sand. The sand is compacted around the foam shape to support it. Molten metal is then poured directly into the foam pattern. The intense heat of the metal instantly vaporizes the EPS foam (this is why it’s called "lost foam"), leaving no residue behind. The metal perfectly fills the cavity left by the vaporized foam. Once the metal has cooled and solidified, the sand and ceramic shell are broken away to reveal a precise, near-net-shape metal casting. This process is highly economical for producing complex shapes in small parts or large castings, as it reduces the need for extensive machining.

What are Common Problems in the EPS Molding Process and How to Fix Them?

Even with the best equipment, challenges can arise in the molding process. From my years of troubleshooting with clients, most issues can be traced back to a few key variables. Knowing what to look for is key to maintaining quality and efficiency.

• Problem: Under-filled Parts or Voids

  • Cause: This often means not enough EPS beads made it into the mold, or they didn’t expand enough to fill the mold completely. It can be caused by blocked filling guns, insufficient venting in the mold, or low steam pressure.
  • Solution: Check the filling system for obstructions. Ensure all mold vents are clean and clear. Verify that your steam pressure and volume are adequate for the size of the mold.

• Problem: Poor Fusion Between Beads

  • Cause: The beads did not get hot enough to properly melt their outer surfaces and fuse together. The resulting foam will be weak and crumble easily. This is usually due to insufficient steam time or pressure, or wet steam.
  • Solution: Increase the steaming time or pressure. Ensure your boiler is providing dry, high-quality steam. Also, check that the pre-expanded beads have been aged properly.

• Problem: Warping or Distortion After Ejection

  • Cause: The part was ejected from the mold before it was sufficiently cooled. The internal pressure of the foam is still too high, causing it to deform as it cools in the open air. It can also be caused by uneven cooling within the mold.
  • Solution: Increase the cooling time. Check that the cooling water channels in the mold are not blocked and are providing even cooling across the entire part. A vacuum cooling system can also significantly help to stabilize the part before ejection.

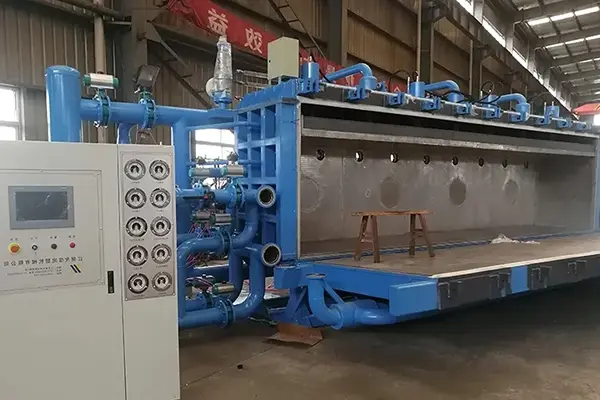

What Role Does the EPS Machine Play in a Perfect Mold?

The EPS machine and the mold are a team; one cannot perform well without the other. The EPS machine, specifically the shape molding machine, is responsible for controlling the entire process with precision. It is the brain and muscle of the operation. A high-quality EPS machine provides precise control over every critical variable, from the timing of the bead filling to the pressure of the steam and the duration of the cooling cycle.

A modern EPS Shape Moulding Machine is a sophisticated piece of equipment. It uses a PLC (Programmable Logic Controller) to automate the entire cycle, ensuring that every single foam part is produced under the exact same conditions. This repeatability is essential for quality control. The machine’s mechanical structure must also be robust enough to securely clamp the two halves of the mold together against the immense pressure created by the expanding steam. Any flexing of the machine can cause the mold to flash, leaving an undesirable thin sheet of foam on the part. Ultimately, the EPS machine is the enabler that allows a good mold to produce a perfect foam product.

Why is EPS Foam a Cost-Effective Solution for Various Industries?

In the end, for any business, the bottom line matters. EPS foam has remained a dominant material for so long because it offers outstanding performance at an economical price point. The cost-effectiveness stems from several factors. The raw material, polystyrene, is relatively inexpensive. The molding process is highly efficient and can be fully automated, reducing labor costs. The primary expansion agent is steam (water), which is also low-cost.

Furthermore, the lightweight properties of EPS foam lead to significant savings down the line. It reduces the costs of transportation, both for the final foam products and for the products that are packaged within it. In construction, its excellent thermal insulation properties reduce a building’s energy consumption for heating and cooling, providing long-term savings for the end-user. The durability and longevity of EPS foam also mean that parts do not need to be replaced frequently. When you combine its low production cost, its performance benefits, and its recyclability, EPS foam represents one of the best value propositions in the materials market today. It’s a smart, efficient, and cost-effective choice.

Key Takeaways for Mastering the EPS Foam Molding Process

Understanding the journey from a simple bead to a complex shape is key to appreciating the power of EPS foam. Whether you are a producer, a buyer, or an engineer, these are the critical points to remember.

• The Process is Key: The three-stage process of pre-expansion, molding, and cooling is fundamental to creating high-quality EPS foam.
• Density is Controlled Early: The final density of the foam is determined during the initial pre-expansion stage by controlling the application of steam.
• The Mold is the Heart: A high-quality, precisely engineered mold is absolutely essential for producing an accurate and well-finished part.
• Precision is Everything: A modern EPS machine provides the precise control over steam, pressure, and time needed to ensure a repeatable and reliable molding process.
• EPS Means Value: The unique combination of lightweight structure, thermal insulation, strength, and low cost makes EPS foam an incredibly cost-effective and versatile material for countless applications.
