Full EPS Plant Supplied to Australia
Client & Project Background
ACE Polystyrene Products PTY Ltd, based in Sydney, Australia, specializes in EPS wall-insulation production. As regional demand for insulated construction panels grew, the client needed a complete, reliable EPS production line to replace an under-performing older system.
Challenge
The client’s previous EPS equipment – sourced from a manufacturer in Hebei, China – suffered from three chronic problems: low production output, air/steam leakage during operation, and high energy consumption. These issues raised the cost per block and capped the client’s ability to scale into the expanding EPS wall-insulation market.
Equipment Supplied – Complete EPS Plant
| Equipment | Spec / Qty |
|---|---|
| Steam Boiler | 2 T x 1 |

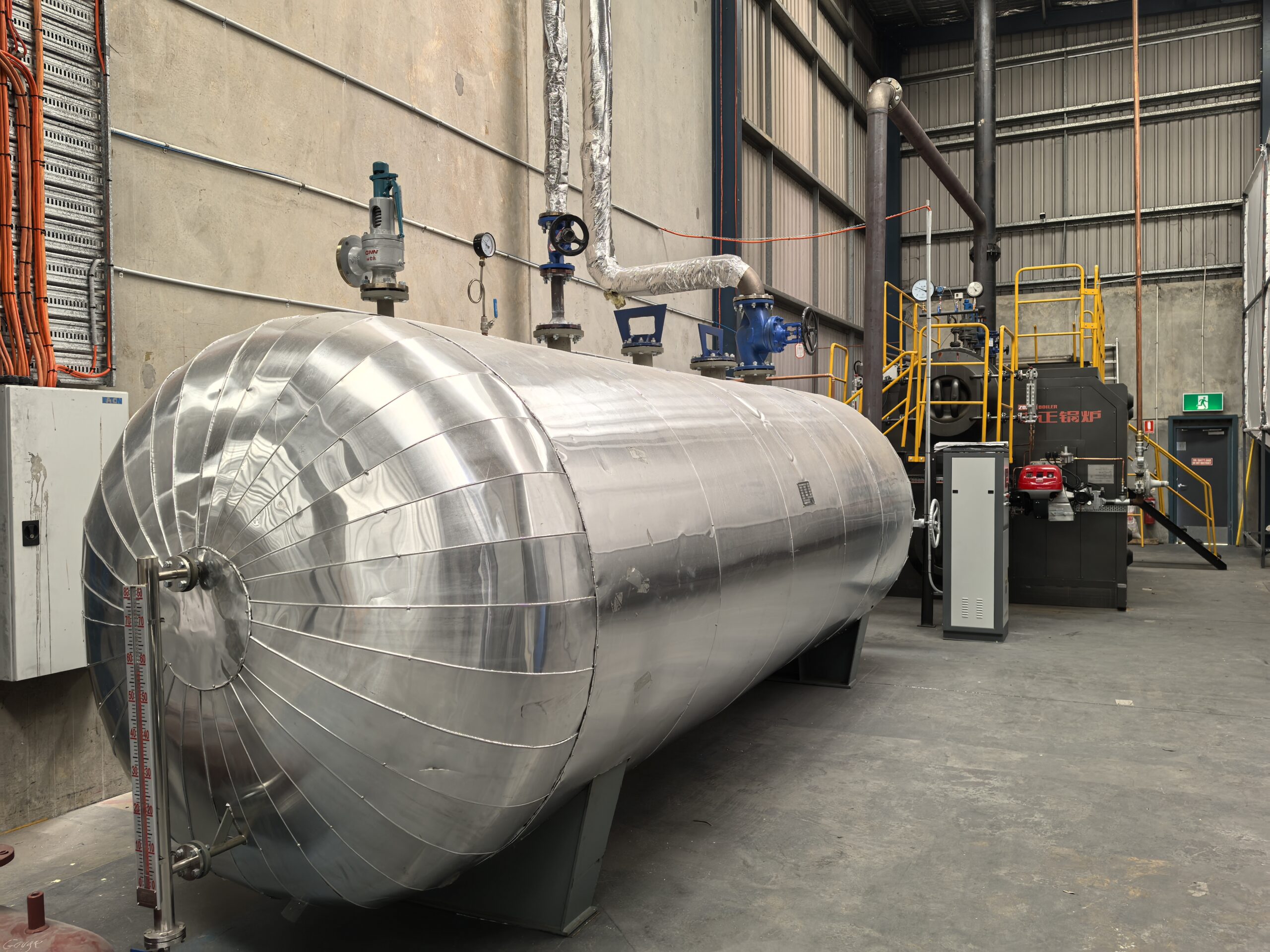

| Steam Accumulator | 15 m3 x 1 |
| EPS Silo | x 12 |

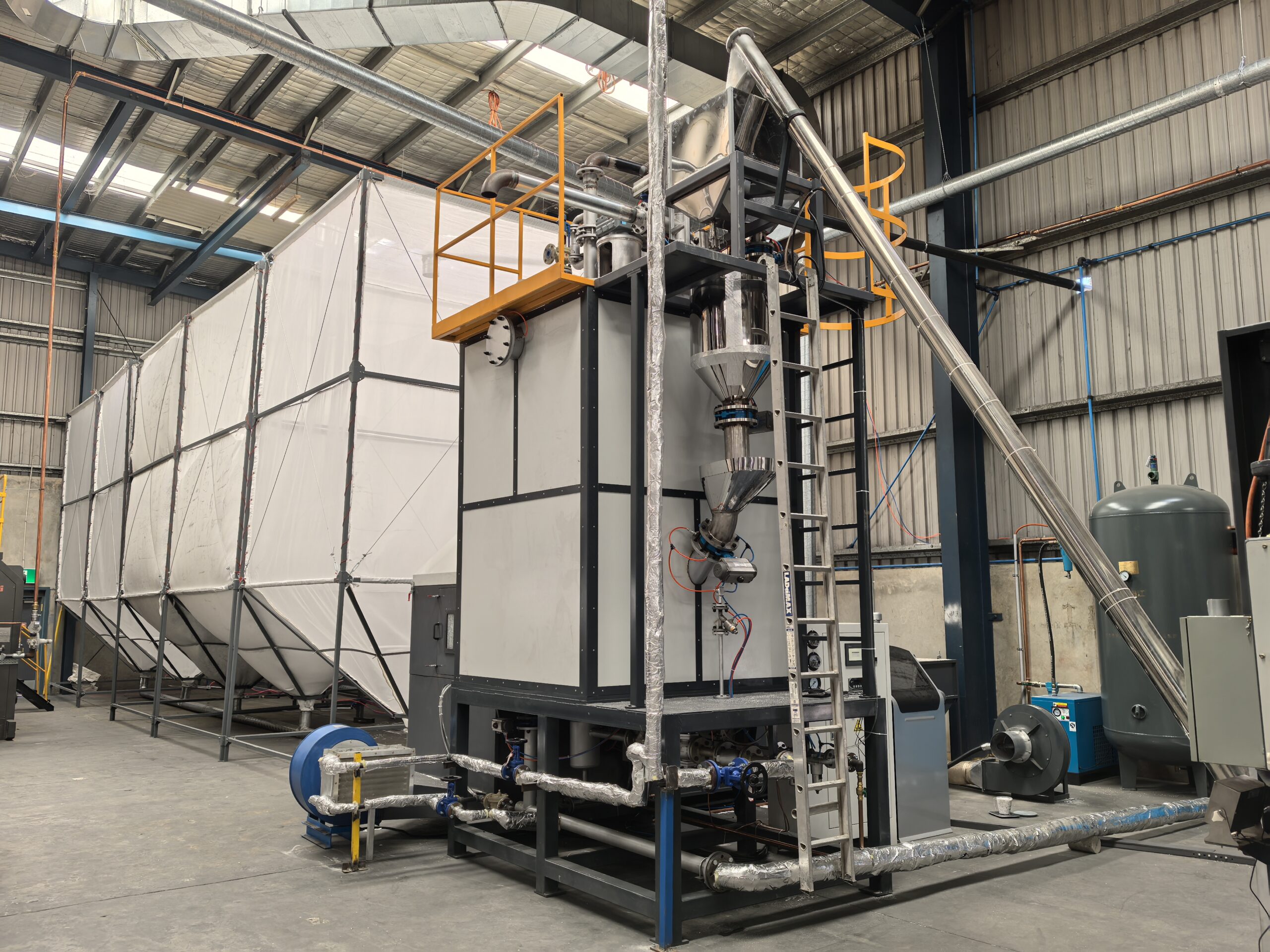

| EPS Pre-expander | SPJY1600 x 1 |

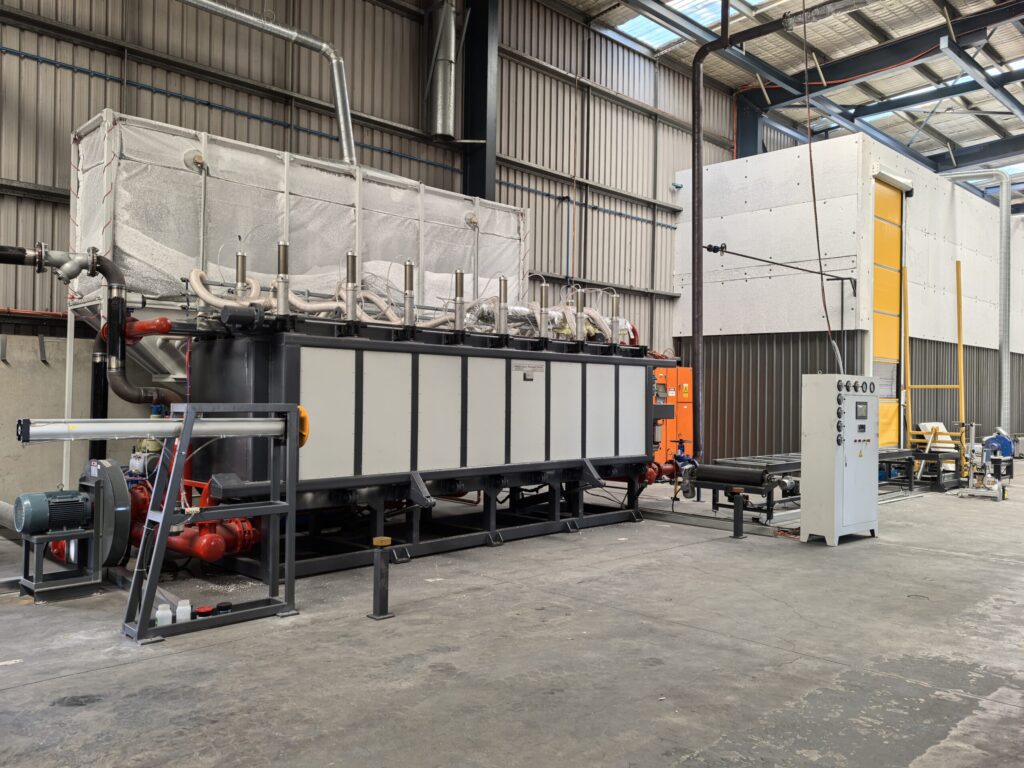

| EPS Block Molding Machine | 5000 x 1200 x 1200 mm x 1 |
| EPS Cutting Line | SPQ5000B x 1 |
| EPS CNC Cutting Machine | x 1 |
| EPS Recycling Machine | x 1 |
Results & Benefits
After commissioning, the new plant eliminated the chronic steam leakage of the previous line and stabilized daily output. Energy consumption per produced block dropped versus the old system, and the integrated recycling machine allows off-cut foam to be reclaimed rather than discarded. (The client did not provide formal output statistics; the above reflects operational feedback from the project handover.)
Implementation Timeline
- Contract signed: April 2024
- Equipment shipped: July 2024
- Commissioning: September 2024
- Project accepted: October 2025
Client Feedback
The client confirmed the new plant resolved the output and leakage limits of the previous line and has been running steadily for their EPS wall-insulation production.
