Height Adjustable EPS Block Molding Machine — Flexible Block Sizes from One Machine
Watch the height-adjustable machine run a short cycle.

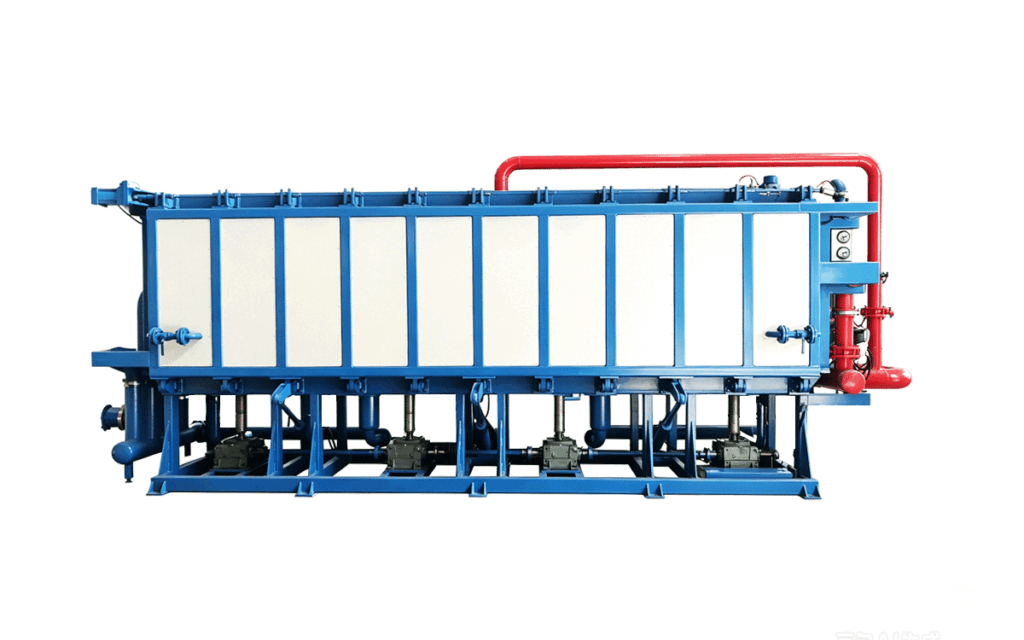

The YouXin Height Adjustable EPS Block Molding Machine combines the energy-saving horizontal single-side-opening design with an adjustable mold wall system. This lets you produce blocks of different thicknesses on the same machine — ideal for factories that serve multiple markets or need to adapt quickly to changing order requirements.
Adjustable Mold Wall Advantage
Instead of buying separate machines for different block sizes, the adjustable wall system allows you to change the mold cavity height to produce blocks from 1000 mm to 1200 mm in thickness. Changeover is controlled from the touch screen — no manual mold swapping needed.
Machine Specifications
| Model | Block Length | Block Width | Block Thickness | Output (@15 kg/m³) |
|---|---|---|---|---|
| SPB-2000R to SPB-6000R | 2000–6000 mm | 1000–1200 mm | 1000–1200 mm (adjustable) | 12–15 blocks/hour |
Mold Body Construction
Steam-contact parts use rigid steel (Type 20G boiler plate) welded construction. Inner walls are 5 mm aluminum plate with slots for even steam distribution. The adjustable wall mechanism is integrated into the mold frame and driven by the PLC system.
Steam Heating & Vacuum Cooling
Double cross-heating technology with individual steam regulating valves. The vacuum system includes a 0.8 m³ condenser tank and a 6 m³ individual vacuum tank with two 11 kW vacuum pumps — compact yet effective for rapid cooling and moisture reduction.
Key Features
- CE certified with multiple safety features
- Step or Auto operation modes
- Adjustable mold walls for flexible block thickness
- Single-side opening minimizes steam leakage
- Homogeneous block density (±3%)
- Low energy consumption, high output
- Optional weighing unit, tilter and exit block conveyor
- Optional EPS Block Automatic Conveyor System
- Machine color: Mold body RAL 5012 Blue + piping RAL 3001 Red
Major Components
- Touch Screen & PLC: Delta (China)
- Electronics: Schneider (France)
- Aluminum Plate: 2A12 (China)
- Butterfly Valve & Ball Valve: ABC Valve (Singapore)
- Vacuum Pump: Yulong (China)
- Photo Sensor: Autonics (Korea)
